Michael Barile

BadNixie.com LLC

Introducing the ALL NEW limited release MOD-SIX-Lumina. We believe this is to be our best MOD-SIX yet and our heaviest. Lumina measures 21-1/2” X 5-1/4”X 3-1/4” and weighs in at 15.15 #’s! It is still based on the indestructible B7971 segmented Nixie, yet the clock has a completely new enclosure, new printed circuit boards, a new user interface, and is chock full of exciting new features. Here’s a list of just a few of the most notable:

THE ABOVE ASSUMES FAMILIARITY WITH PRIOR VERSIONS OF MOD-SIX. PLEASE REFER TO THIS SITE FOR INFORMATION ON PRIOR VERSIONS. OR CONTACT ME DIRECTLY AT BADNIXIE@BADNIXIE.COM

****  see below for pricing information  ***

•Wifi-based internet time and date sync with Espressif ESP32 MCU. SuperCap backed up by onboard ±1 PPM RTC chip, so IF your connectivity lapses Lumina remains accurate.

•Web-Based menu selection via MAC/PC or iOS/Android or manual rear-mounted Rotary Encoder. Optional FOB remote control may also be used.

•Web-Based FW Updates, no more messing with cables and middleware software products.

•SINGLE Cable Hook up! Lumina requires only a power cable to be fully functional. That means you get Wireless Internet Time, Date Sync, as well as tube-saving PIR functionality with just one cable (requires Badnixie WRLS-MET- PIR )

•Programmable recessed RGB LED under-tube lighting

•Unique, programmable, center-mounted overhead RGB

•Selectable ‘breathing’ effect for any and all RGB LEDs

•Wireless MET-PIR, with adustable swivel-head sensor, now acquires complete & accurate Met data as well and remotely transmits to Lumina for display. Most Nixies use on-board Temp sensing at best (certainly no Met data) which can be adversely affected by ambient heat generated by the clock! Parameters supported are temp, relative humidity, and barometric pressure

•Newly designed pluggable Colon Towers-aesthetically pleasing and extremely durable

•New Underscore Carat feature effects-10 different effects to choose from. FINALLY, a Nixie clock manufacture is making use of this neglected parameter.

•Support for all prior MOD-SIX FW feature sets, i.e. WORDS, RPTR, etc. (see prior releases)

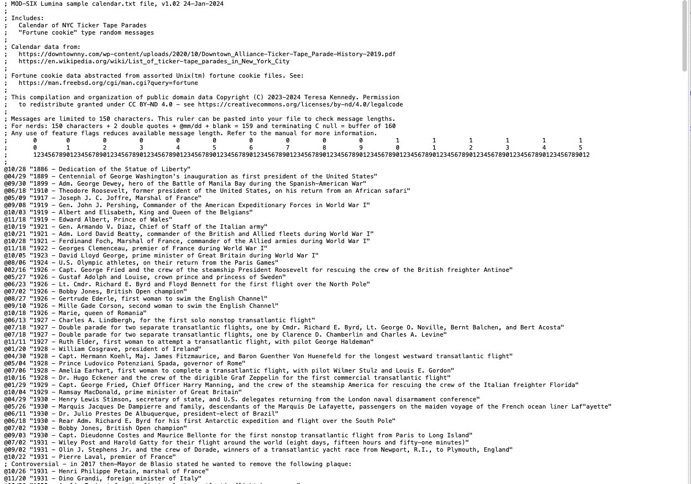

•Added accommodation for 4 supported WORD lexicons-FOUR easily edited plain text files

•New Boot Up Sequence displays RGB LED test, Tube Segment Test, FW version, and assigned IP address- useful in the event tube troubleshooting should be necessary

•New Expanded Timer Functionality allowing for multiple settings within the same 24-hour period

•Tube Run-Time Timer-useful in determining in tube life

•Beautiful custom CNC Milled enclosure constructed of solid 6061 aluminum stock. All pieces sanded then base and top bezel pieces Anodized Gray. This clock is manufactured from some of the finest materials available, making this clock 2nd to none amongst any and all Nixie clocks. Machined by Dekker Machining in Chatsworth, CA

1. •¼” Glass-effect acrylic top to protect those precious B7971’s. Custom designed by me and fabricated for this clock by a top notch Southern California small business called the PlasticZone.


*** CLICK ON THE PICS BELOW TO ZOOM IN ***

Click the above image for a video demonstrating one of the underscore and breathing effects now available with Lumina

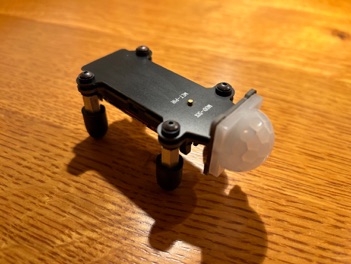

optional WRLS-MET-PIR

Optional FOB Remote Control

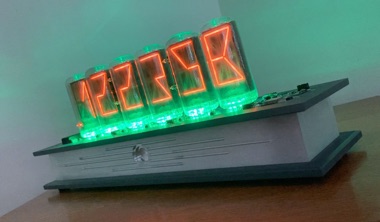

Unique recessed RGB LED’s

Unique Overhead Programmable RGB LED

Lumina displaying Random selected WORD

Newly designed CPU board

incorporating Espressif WiFi CPU chip

Power Supply Board with new style AM/PM TOwer

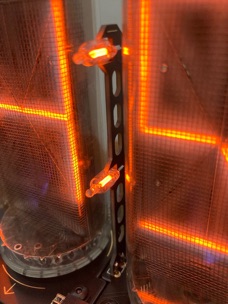

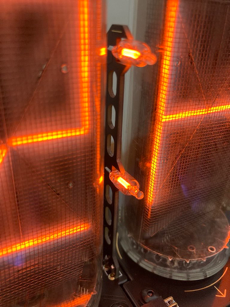

new pluggable style Colon Towers

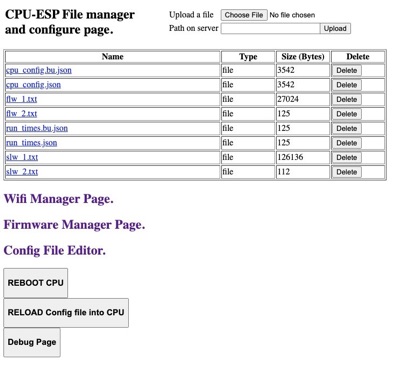

CPU-ESP File Manager Web Page

For FW and Config UPDATES

CPU-ESP File Manager Web Page

For FW and Config updates

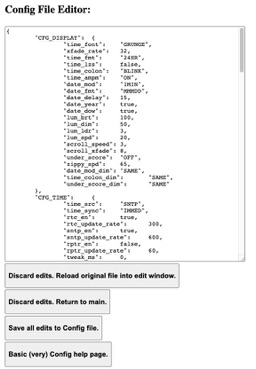

Config Editor Web Page as an

alternative to the rear-mounted Rotary Encoder

Config Editor Web Page as an

alternative to the rear-mounted Rotary Encoder

Elegant Billet Machine design work

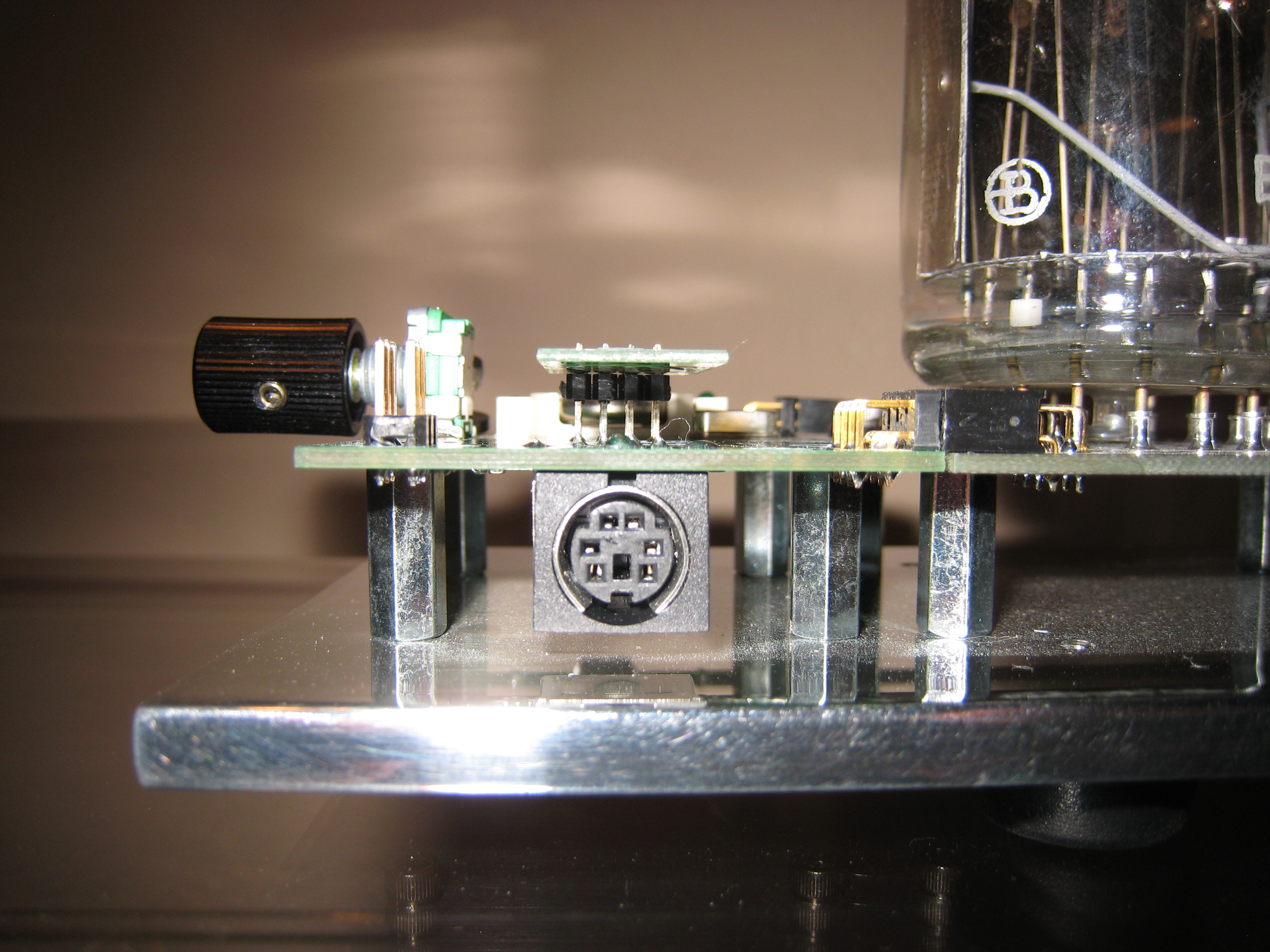

Rear mounted Rotary Encoder for manual

config adjustments

infinite color choices with several new  lighting

effects

infinite color choices with several new  lighting

effects

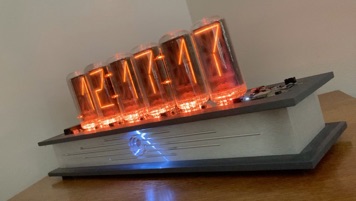

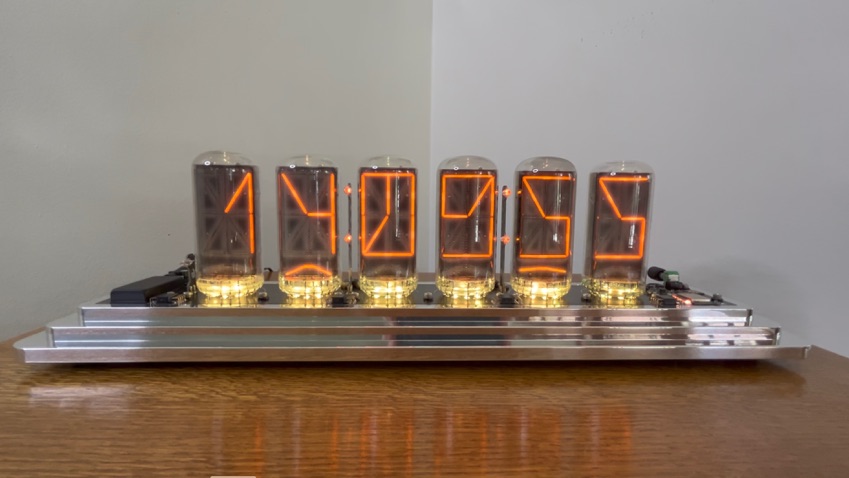

The New MOD-SIX ‘LUMINA’

Lumina is finally released and ready for shipment!

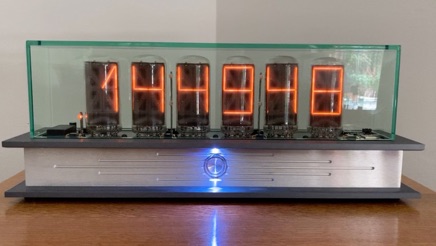

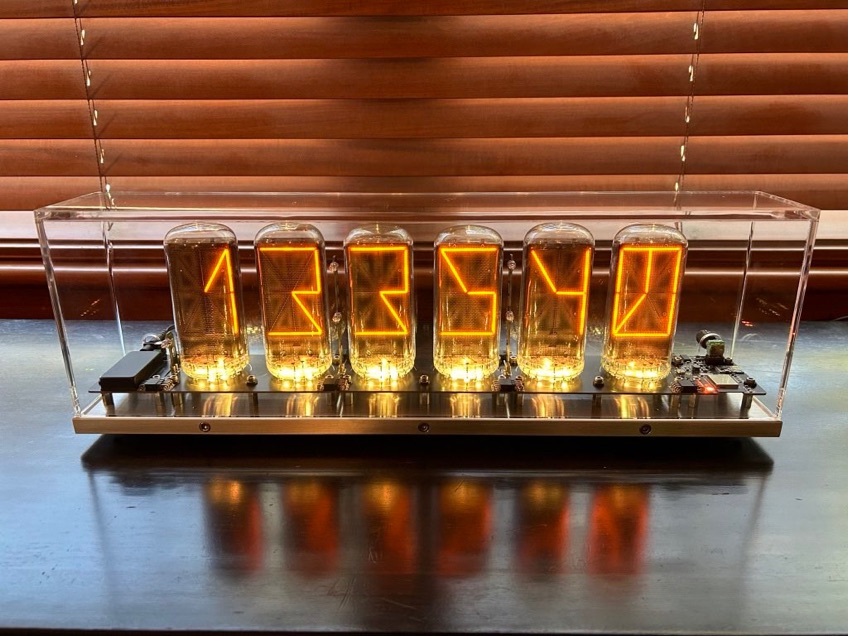

Lumina with standard 1/4” Glass Effect Acrylic top
